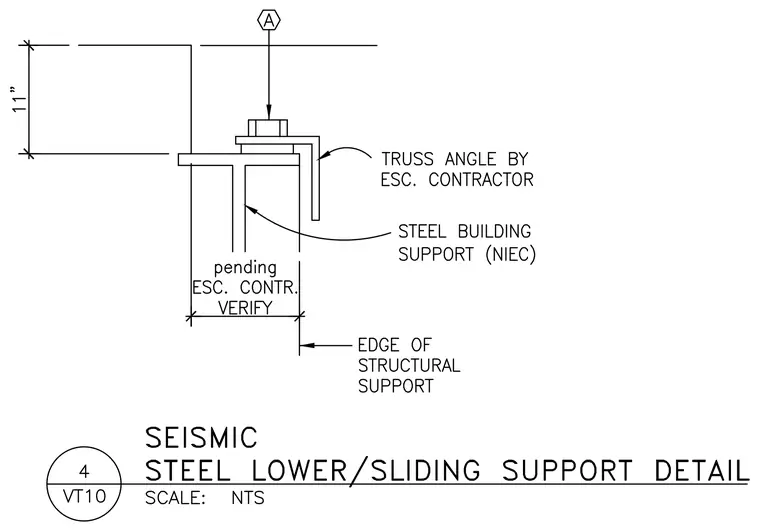

A seismic steel lower sliding support assembly connects a truss angle installed by the ESC contractor to a steel building support. An eleven-inch vertical dimension is referenced from the support assembly to an upper reference line marked with bubble A. The truss angle is positioned over the steel building support, with an edge of structural support designated below. Notes indicate that portions of the work are pending ESC contractor verification.
