A wide-flange column base connection utilizes a three-quarter-inch ASTM A36 base plate secured with four three-quarter-inch anchor bolts. One-half-inch ASTM A36 stiffener plates are welded to each side of the web, with their width matching the column flange above. A one-half-inch minimum shear tab connects via fillet welds, including quarter-inch and five-sixteenth-inch sizes as specified. Edge distance and bolt spacing adhere to typical AISC specifications.

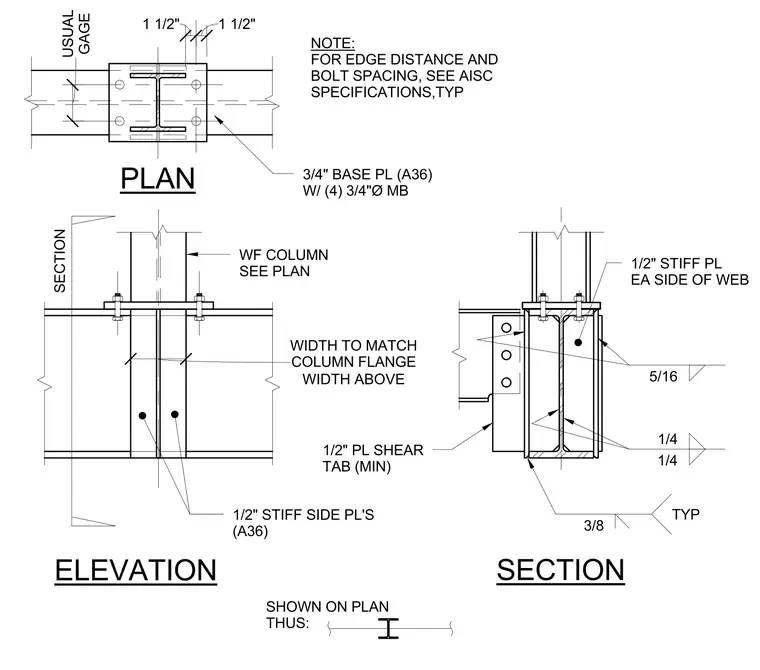

SECTION SHOWN ON PLAN THUS: SECTION PLAN ELEVATION WF COLUMN SEE PLAN NOTE: FOR EDGE DISTANCE AND BOLT SPACING, SEE AISC SPECIFICATIONS,TYP 1/2" STIFF SIDE PL'S (A36) 1/2" PL SHEAR TAB (MIN) 3/4" BASE PL (A36) W/ (4) 3/4"Ø MB 1/2" STIFF PL EA SIDE OF WEB 3/8 TYP 1/4 1/4 5/16 WIDTH ABOVE WIDTH TO MATCH COLUMN FLANGE 1 1/2" 1 1/2" GAGE USUAL
