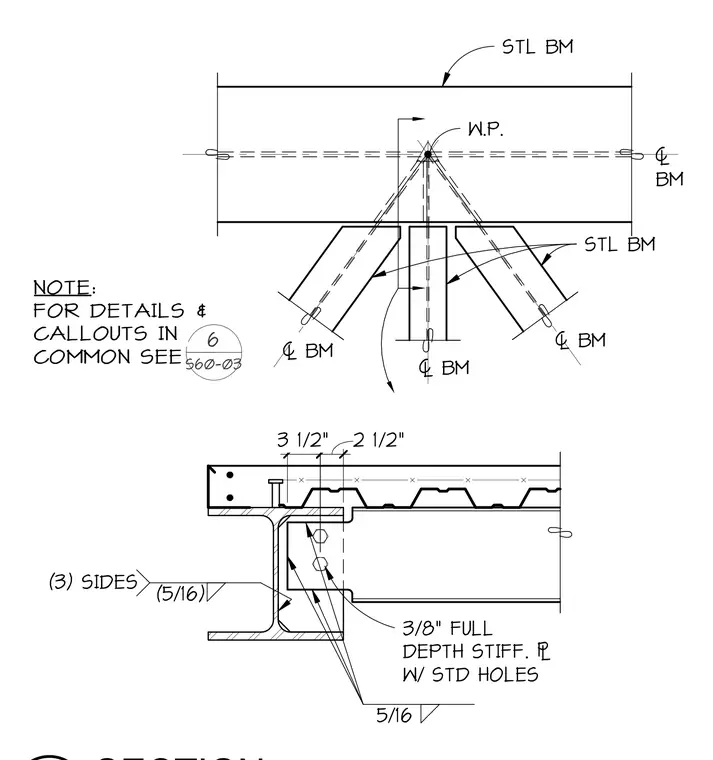

A steel beam connects to a supporting steel beam utilizing a three-eighths-inch full-depth stiffener plate with standard holes welded to the web. Five-sixteenth-inch fillet welds are specified on three sides of the connection. The detail includes dimensional offsets of two and a half inches and three and a half inches relative to the beam flanges and deck profile.
3/8" FULL DEPTH STIFF. W/ STD HOLES (5/16) (3) SIDES 5/16 NOTE: FOR DETAILS & CALLOUTS IN COMMON SEE 6 S60-03 W.P. STL BM BM STL BM BM BM BM 2 1/2" 3 1/2"
