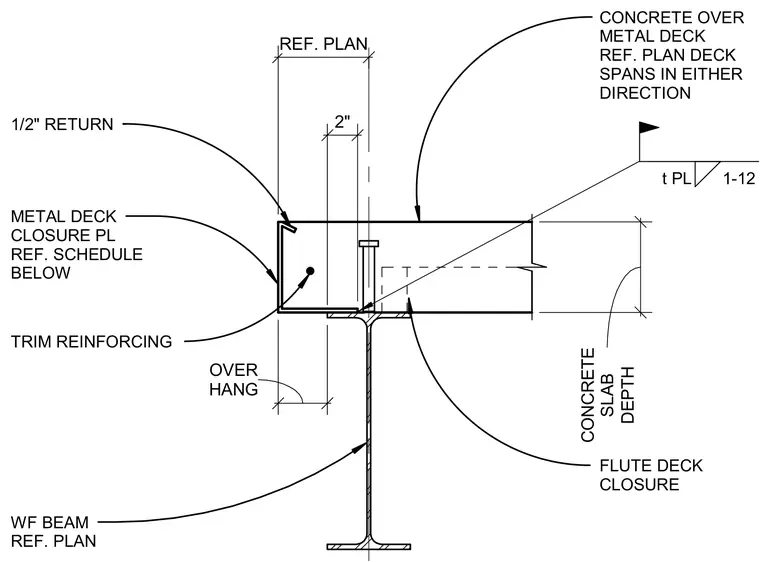

A concrete slab over metal deck bears on a wide flange steel beam with a specified slab depth and a two-inch overhang. A metal deck closure plate features a one-half-inch return and trim reinforcing along the perimeter edge. Flute deck closures are provided at the beam support, and a welded connection is detailed at the deck boundary.
CONCRETE OVER METAL DECK REF. PLAN DECK SPANS IN EITHER DIRECTION FLUTE DECK CLOSURE WF BEAM REF. PLAN METAL DECK CLOSURE PL REF. SCHEDULE BELOW REF. PLAN DEPTH CONCRETE SLAB t PL 1-12 1/2" RETURN TRIM REINFORCING 2" HANG OVER
