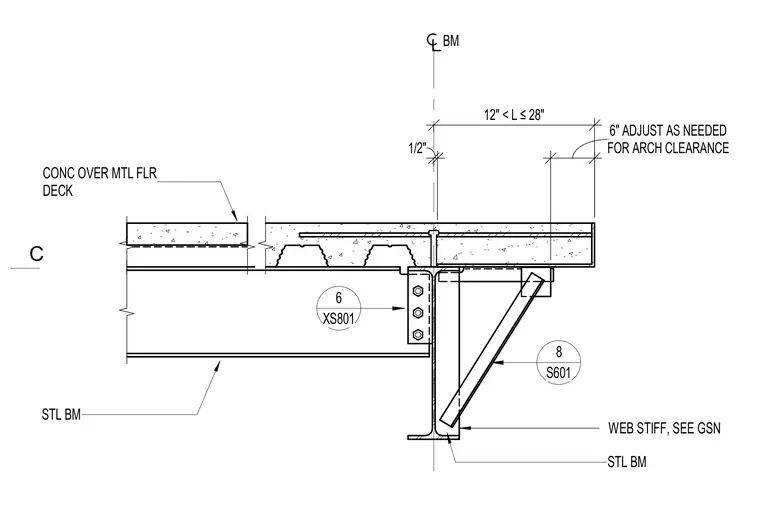

A concrete over metal floor deck bears on a steel beam connected via a shear tab and bolts. A structural steel beam supports the assembly below, featuring a web stiffener adjusted as needed for architectural clearance.
CONC OVER MTL FLR DECK 1/2" 12" < L ≤ 28" STL BM STL BM BM WEB STIFF, SEE GSN 6 XS801 8 S601 FOR ARCH CLEARANCE 6" ADJUST AS NEEDED C
