Structural · S-NWQ7F

Housekeeping Pad Detail

Materials

Concrete Glass / Glazing Metal (misc.)

Elements

Walls Curtain Walls Floors / Slabs Decks Foundations / Footings Arches Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development

About this detail

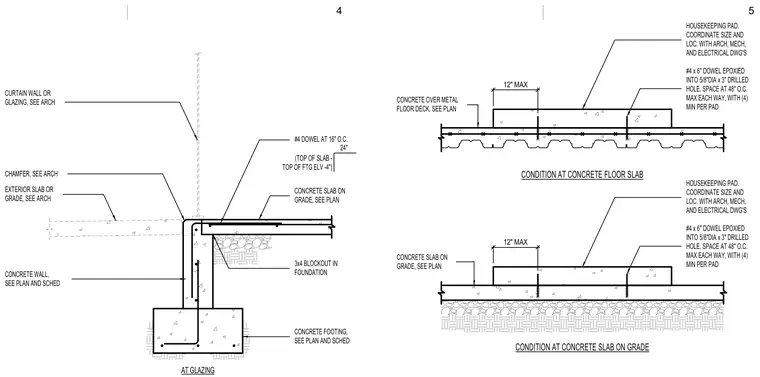

Housekeeping pad installations across multiple conditions include concrete slabs on grade and concrete over metal floor decks. The housekeeping pads are secured using number 4 by 6 inch dowels epoxied into five-eighths inch diameter by 3 inch drilled holes spaced at 48 inches on center, with a minimum of four dowels per pad and a maximum 12 inch spacing from edges. Foundation conditions show a concrete wall bearing on a concrete footing with vertical reinforcing dowels and a 3x4 blockout. Exterior slab-on-grade interfaces incorporate curtain wall or glazing assemblies and chamfer details coordinated with architectural drawings.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
