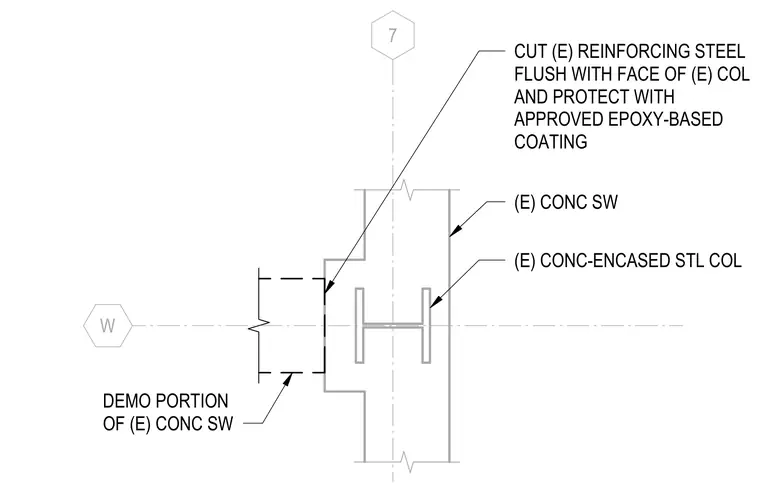

A portion of the existing concrete shear wall is demolished adjacent to an existing concrete-encased steel column. The existing reinforcing steel is cut flush with the face of the existing column and protected with an approved epoxy-based coating.
W 7 (E) CONC-ENCASED STL COL (E) CONC SW DEMO PORTION OF (E) CONC SW CUT (E) REINFORCING STEEL FLUSH WITH FACE OF (E) COL AND PROTECT WITH APPROVED EPOXY-BASED COATING
