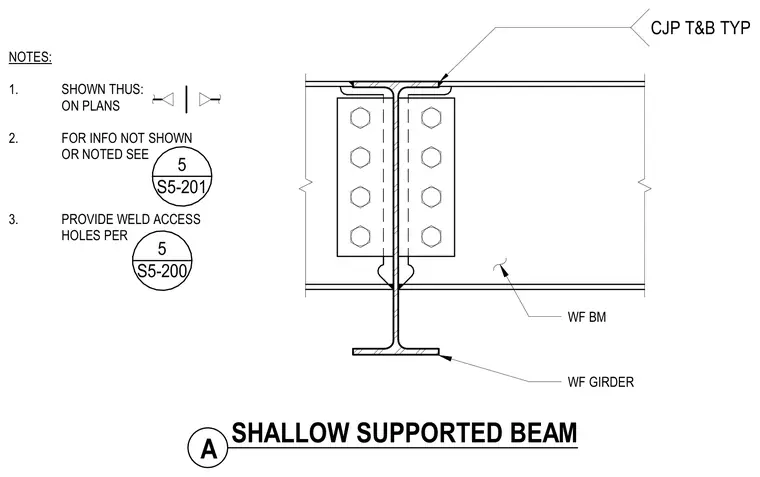

A wide-flange supported beam connects to a wide-flange girder using a bolted web plate with two vertical rows of four bolts each. Complete joint penetration welds are specified at the top and bottom flanges of the supported beam, with weld access holes provided at the web-to-flange intersections per structural standards.
5 S5-201 5 S5-200 NOTES: 1. SHOWN THUS: ON PLANS 2. FOR INFO NOT SHOWN OR NOTED SEE 3. PROVIDE WELD ACCESS HOLES PER WF BM WF GIRDER A SHALLOW SUPPORTED BEAM CJP T&B TYP
