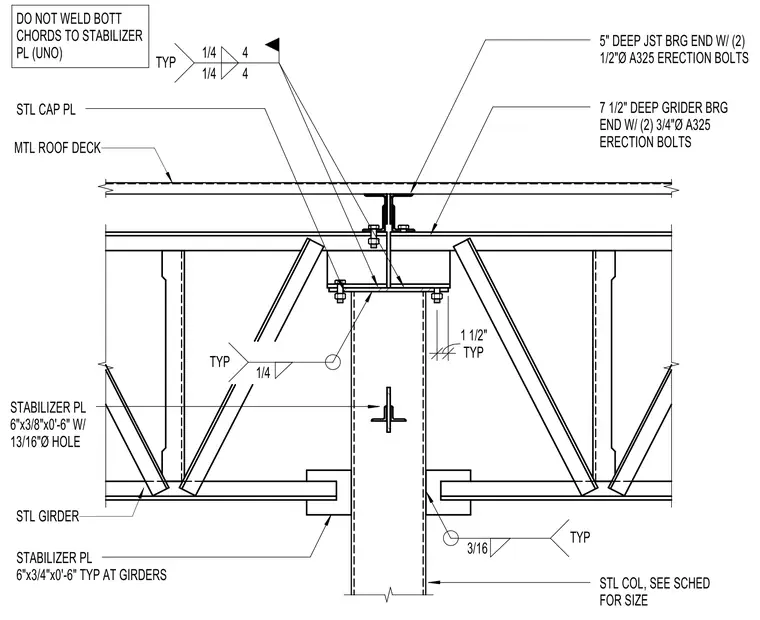

Steel roof joists and girders bear onto a structural steel column topped with a steel cap plate. The five-inch deep joist bearing end connects with two 1/2-inch diameter A325 erection bolts, while the seven-and-a-half-inch deep girder bearing end secures with two 3/4-inch diameter A325 erection bolts. Stabilizer plates measuring 6 inches by 3/8 inches by 0 feet 6 inches with 13/16-inch diameter holes are detailed alongside 6-inch by 3/4-inch by 0-foot 6-inch stabilizer plates typical at girders. A 3/16-inch fillet weld is applied typically, and bottom chords remain unwelded to the stabilizer plate unless noted otherwise. Metal roof deck sits above the structural framing members.
STL CAP PL DO NOT WELD BOTT CHORDS TO STABILIZER PL (UNO) TYP 3/16 MTL ROOF DECK STL GIRDER STABILIZER PL 6"x3/4"x0'-6" TYP AT GIRDERS STL COL, SEE SCHED FOR SIZE TYP 1 1/2" STABILIZER PL 6"x3/8"x0'-6" W/ 13/16"Ø HOLE TYP 1/4 7 1/2" DEEP GRIDER BRG END W/ (2) 3/4"Ø A325 ERECTION BOLTS 5" DEEP JST BRG END W/ (2) 1/2"Ø A325 ERECTION BOLTS 1/4 TYP 1/4 4 4
