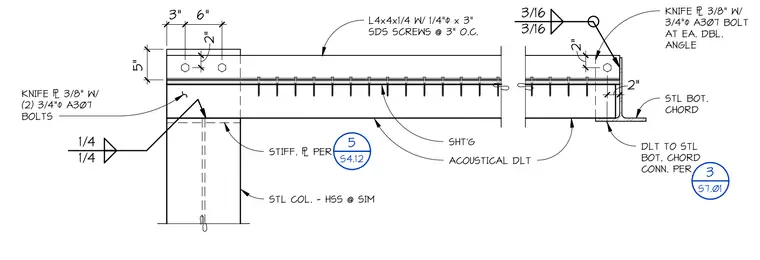

A structural steel hollow structural section column supports an acoustical detail assembly featuring an L4x4x1/4 angle fastened with 1/4-inch diameter by 3-inch self-drilling screws at 3 inches on center. A 3/8-inch knife plate connects using two 3/4-inch diameter A307 bolts at the column and a 3/4-inch diameter A307 bolt at each double angle. Stiffener plates are provided per detail 5 on sheet S4.12, and the connection to the steel bottom chord is detailed per sheet S7.01.
5" 3" 6" 2" 1/4 1/4 KNIFE ( 3/8" W/ (2) 3/4"4 A307 BOLTS STIFF. ( PER 5 S4.12 STL COL. - HSS @ SIM SHT'G ACOUSTICAL DLT L4x4x1/4 W/ 1/4"4 x 3" SDS SCREWS @ 3" O.C. DLT TO STL BOT. CHORD CONN. PER 3 S7.01 STL BOT. CHORD 2" 2" 3/16 3/16 KNIFE ( 3/8" W/ 3/4"4 A307 BOLT AT EA. DBL. ANGLE
