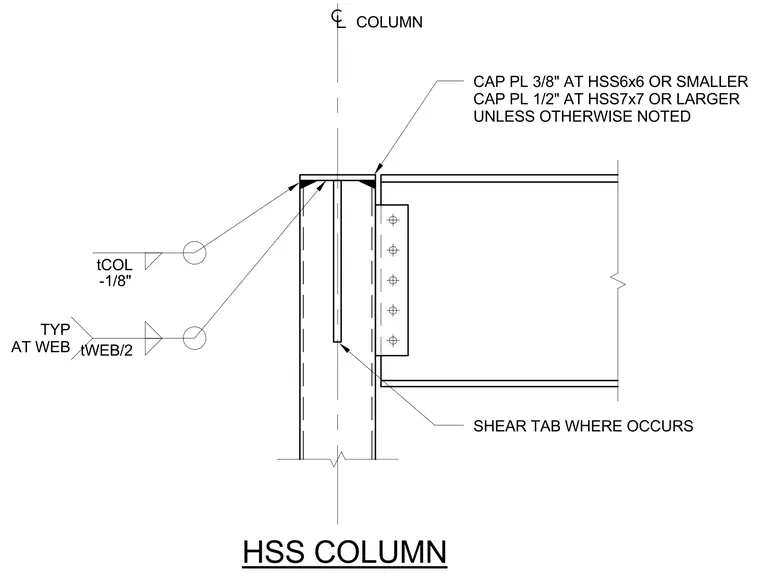

A hollow structural section column terminates with a welded cap plate measuring three-eighths of an inch thick for sections six by six or smaller, and one-half inch thick for sections seven by seven or larger. A continuous or typical weld connects the cap plate to the column profile. A vertical shear tab is centered inside or along the column web for beam attachment where it occurs.
CAP PL 3/8" AT HSS6x6 OR SMALLER CAP PL 1/2" AT HSS7x7 OR LARGER UNLESS OTHERWISE NOTED SHEAR TAB WHERE OCCURS COLUMN tWEB/2 TYP AT WEB tCOL HSS COLUMN -1/8"
