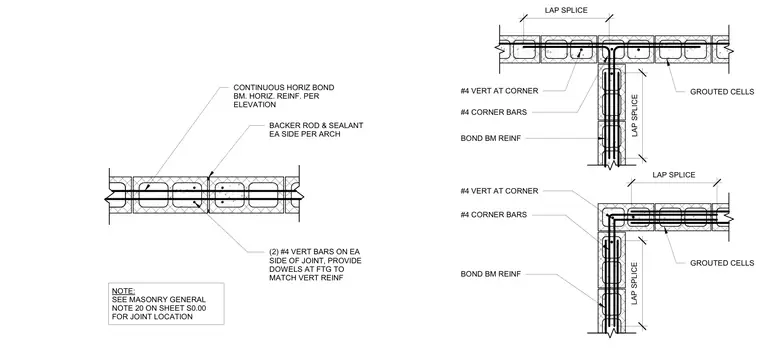

Concrete masonry unit wall intersections and corners feature continuous horizontal bond beam reinforcement with lap splices in grouted cells. Vertical reinforcement includes number four bars at corners with matching corner bars and dowels at the footing. Control joints incorporate backer rod and sealant on each side with two number four vertical bars on each side of the joint.
BACKER ROD & SEALANT EA SIDE PER ARCH (2) #4 VERT BARS ON EA SIDE OF JOINT, PROVIDE DOWELS AT FTG TO MATCH VERT REINF CONTINUOUS HORIZ BOND BM. HORIZ. REINF. PER ELEVATION NOTE: SEE MASONRY GENERAL NOTE 20 ON SHEET S0.00 FOR JOINT LOCATION LAP SPLICE LAP SPLICE LAP SPLICE LAP SPLICE GROUTED CELLS #4 VERT AT CORNER #4 CORNER BARS BOND BM REINF #4 VERT AT CORNER #4 CORNER BARS BOND BM REINF GROUTED CELLS
