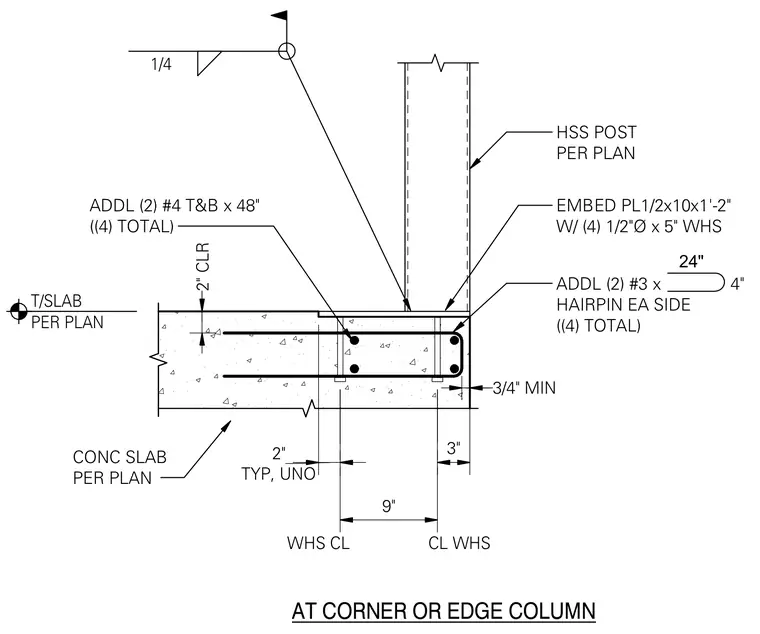

A hollow structural section post is welded to a half-inch by ten-inch by one-foot two-inch embed plate using a one-quarter-inch fillet weld. The embed plate is anchored into the concrete slab per plan with four half-inch diameter by five-inch welded headed studs. Additional reinforcing includes two number four top and bottom bars measuring forty-eight inches long for a total of four, along with two number three hairpin bars at each side measuring twenty-four by four inches for a total of four. The slab edge maintains a three-quarter-inch minimum clearance.
T/SLAB PER PLAN EMBED PL1/2x10x1'-2" W/ (4) 1/2"Ø x 5" WHS ADDL (2) #4 T&B x 48" ((4) TOTAL) CONC SLAB PER PLAN ADDL (2) #3 x 4" HAIRPIN EA SIDE ((4) TOTAL) TYP, UNO 2" 3" 1/4 HSS POST PER PLAN AT CORNER OR EDGE COLUMN 3/4" MIN 2" CLR 9" WHS CL CL WHS 24"
