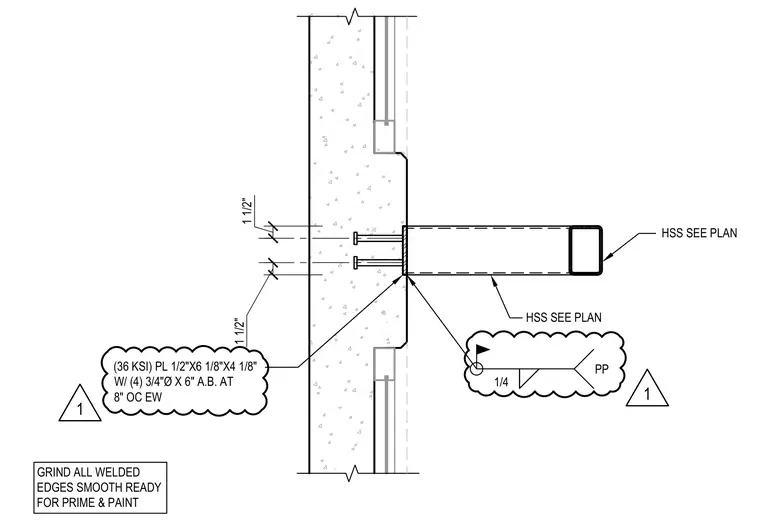

A hollow structural section canopy beam connects to a concrete wall via a steel plate embedded with anchor bolts. The assembly utilizes a 1/2" x 6-1/8" x 4-1/8" steel plate rated at 36 ksi, secured with four 3/4" diameter x 6" anchor bolts spaced at 8" on center each way. A 1/4" weld connects the structural steel member to the plate, with all welded edges ground smooth and prepared for prime and paint.
GRIND ALL WELDED EDGES SMOOTH READY FOR PRIME & PAINT 1 1/2" 1 1/2" 1/4 HSS SEE PLAN HSS SEE PLAN (36 KSI) PL 1/2"X6 1/8"X4 1/8" W/ (4) 3/4"Ø X 6" A.B. AT 8" OC EW PP 1 1
