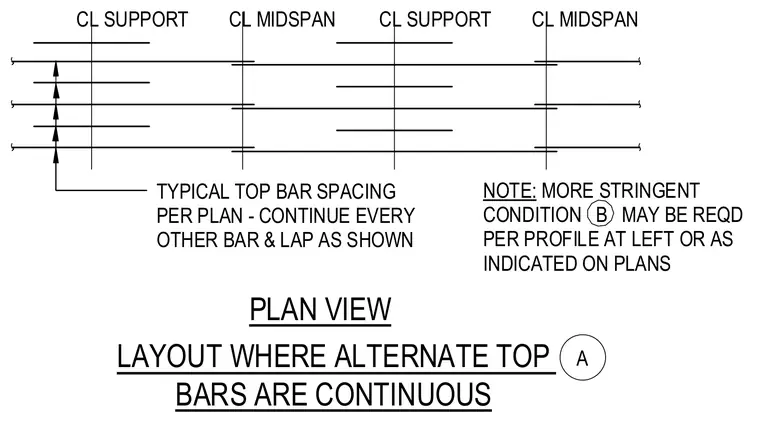

This plan view details the reinforcement layout where alternate top bars are continuous across supports and midspans. Typical top bar spacing follows the plan, requiring every other bar to continue and lap as shown. A note indicates that a more stringent condition B may be required per the profile at the left or as indicated on the plans.
CL SUPPORT CL MIDSPAN CL SUPPORT CL MIDSPAN TYPICAL TOP BAR SPACING PER PLAN - CONTINUE EVERY OTHER BAR & LAP AS SHOWN LAYOUT WHERE ALTERNATE TOP BARS ARE CONTINUOUS PLAN VIEW NOTE: MORE STRINGENT CONDITION B MAY BE REQD PER PROFILE AT LEFT OR AS INDICATED ON PLANS A
