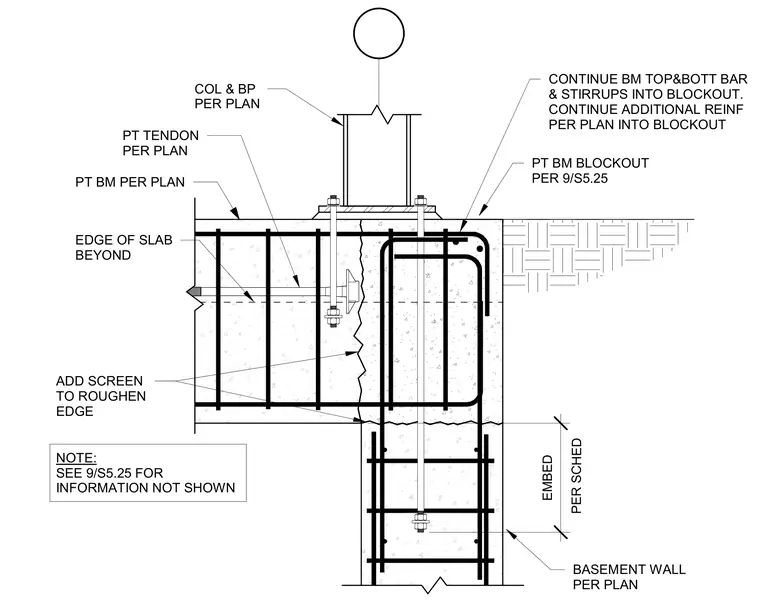

A post-tensioned beam bears on a reinforced concrete basement wall with a column and base plate supported above. Post-tensioned tendons and beam reinforcement extend into a beam blockout at the wall junction. Hairpin reinforcing bars and embed plates anchor the assembly into the concrete wall per the structural schedule.
NOTE: SEE 9/S5.25 FOR INFORMATION NOT SHOWN COL & BP PER PLAN PT BM PER PLAN BASEMENT WALL PER PLAN PT BM BLOCKOUT PER 9/S5.25 PT TENDON PER PLAN CONTINUE BM TOP&BOTT BAR & STIRRUPS INTO BLOCKOUT. CONTINUE ADDITIONAL REINF PER PLAN INTO BLOCKOUT PER SCHED EMBED ADD SCREEN TO ROUGHEN EDGE EDGE OF SLAB BEYOND
