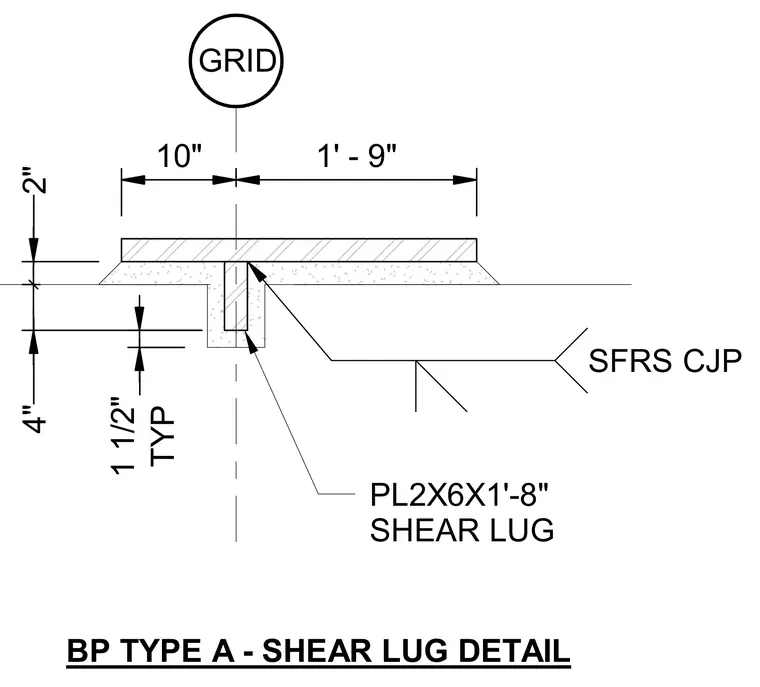

A structural shear lug connection consisting of a 2-inch by 6-inch by 1'-8" plate designated as a shear lug welded with a complete joint penetration weld to a base plate. The shear lug embeds 4 inches into the foundation with a typical 1 1/2-inch clearance. Dimensions locate the assembly 10 inches and 1'-9" from the grid line.
GRID PL2X6X1'-8" SHEAR LUG 4" 2" SFRS CJP BP TYPE A - SHEAR LUG DETAIL 10" 1' - 9" TYP 1 1/2"
