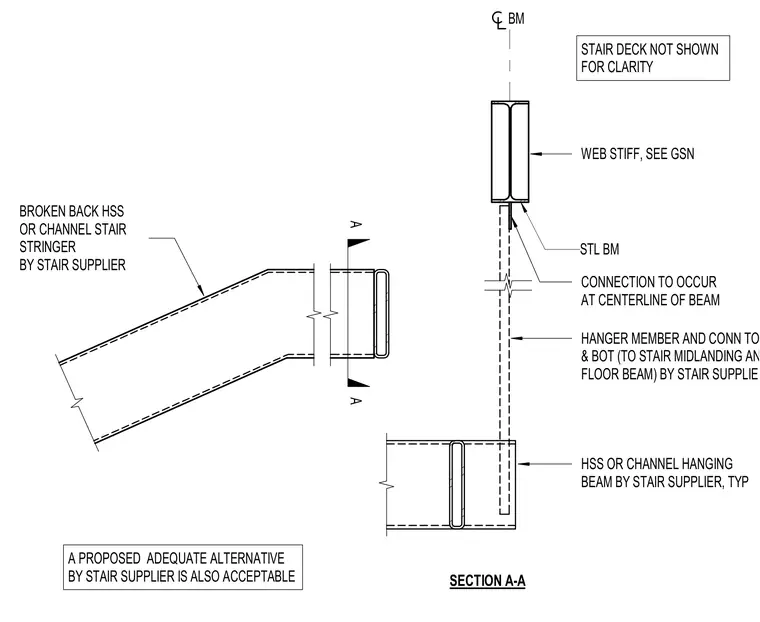

A broken back hollow structural section or channel stair stringer connects to a hanging beam of hollow structural section or channel, with the connection occurring at the centerline of the steel beam. A web stiffener is provided at the steel beam. Hanger members and connections at the top and bottom tie the stair midlanding to the floor beam, all provided by the stair supplier. The stair deck is omitted for clarity, and an adequate alternative proposed by the stair supplier is also acceptable.
A A STL BM WEB STIFF, SEE GSN BROKEN BACK HSS OR CHANNEL STAIR STRINGER BY STAIR SUPPLIER BM HSS OR CHANNEL HANGING BEAM BY STAIR SUPPLIER, TYP HANGER MEMBER AND CONN TOP & BOT (TO STAIR MIDLANDING AND FLOOR BEAM) BY STAIR SUPPLIER CONNECTION TO OCCUR AT CENTERLINE OF BEAM SECTION A-A STAIR DECK NOT SHOWN FOR CLARITY A PROPOSED ADEQUATE ALTERNATIVE BY STAIR SUPPLIER IS ALSO ACCEPTABLE
