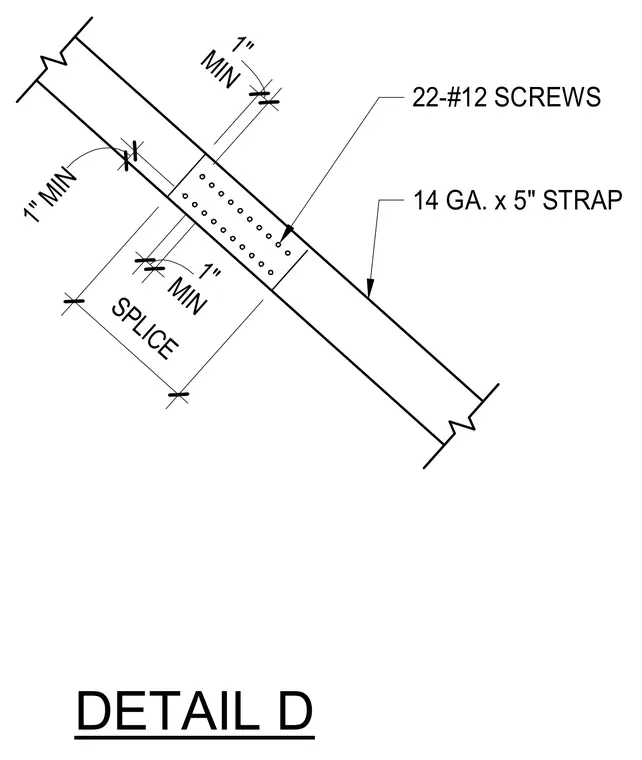

Two aligned structural members meet at a spliced joint bridged by a fourteen gauge by five-inch steel strap. Twenty-two number twelve screws fasten the strap to the framing members with one-inch minimum edge distances and end clearances.
DETAIL D 14 GA. x 5" STRAP 22-#12 SCREWS MIN 1" 1" MIN MIN 1" SPLICE
