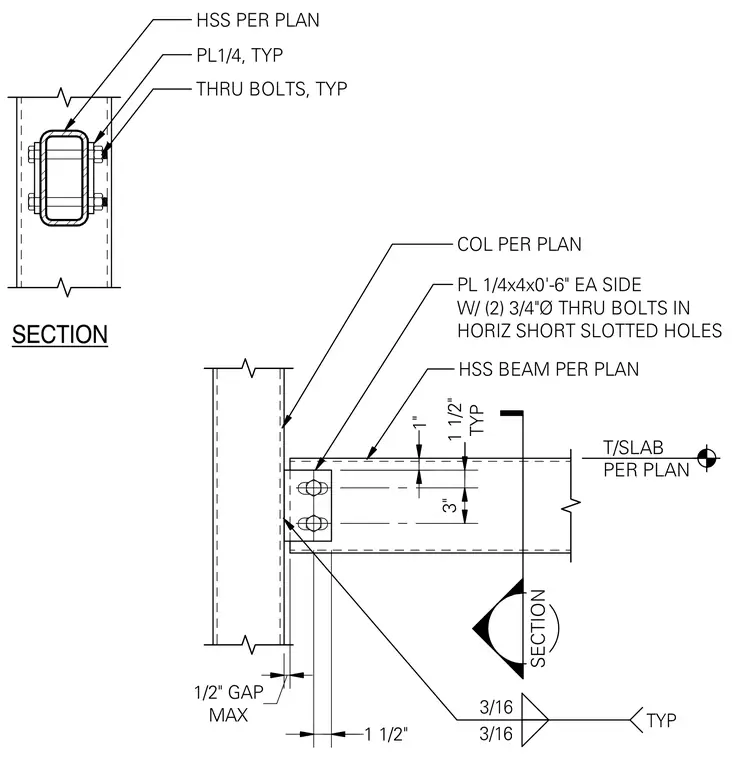

An HSS spreader beam frames into a structural steel column sized per plan, maintaining a maximum one-half-inch gap at the connection interface. Two one-quarter-inch by four-inch by six-inch plates are positioned on each side of the connection, secured with two three-quarter-inch diameter through-bolts in horizontal short-slotted holes. Three-sixteenth-inch typical fillet welds tie the members together, with additional plate elements detailed at one-quarter-inch thickness. The top of the structural slab is located per plan relative to the HSS beam profile.
MAX 1/2" GAP SECTION 1" PL 1/4x4x0'-6" EA SIDE W/ (2) 3/4"Ø THRU BOLTS IN HORIZ SHORT SLOTTED HOLES COL PER PLAN 3/16 3/16 TYP HSS BEAM PER PLAN SECTION 3" TYP 1 1/2" PL1/4, TYP THRU BOLTS, TYP HSS PER PLAN 1 1/2" T/SLAB PER PLAN
