A wood post connects to a holdown device bolted to the post and anchored to a concrete slab on grade and foundation footing. A threaded rod per schedule is set in Hilti HIT-RE 500-V3 epoxy with special inspection required, positioned twelve and a half inches unassigned or as noted from the centerline of the anchor bolt. A pressure-treated wood sill plate is placed below the sill per the schedule. The concrete footing top elevation is set per detail ten, with reinforcing and a concrete slab on grade above the compacted subgrade.

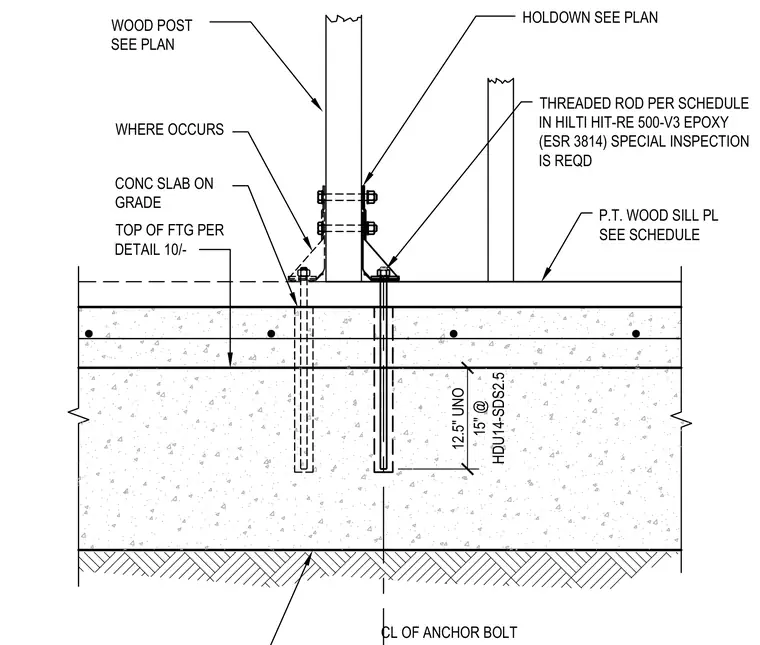

12.5" UNO CL OF ANCHOR BOLT P.T. WOOD SILL PL SEE SCHEDULE WOOD POST SEE PLAN HOLDOWN SEE PLAN WHERE OCCURS CONC SLAB ON GRADE THREADED ROD PER SCHEDULE IN HILTI HIT-RE 500-V3 EPOXY (ESR 3814) SPECIAL INSPECTION IS REQD TOP OF FTG PER DETAIL 10/- 15" @ HDU14-SDS2.5
