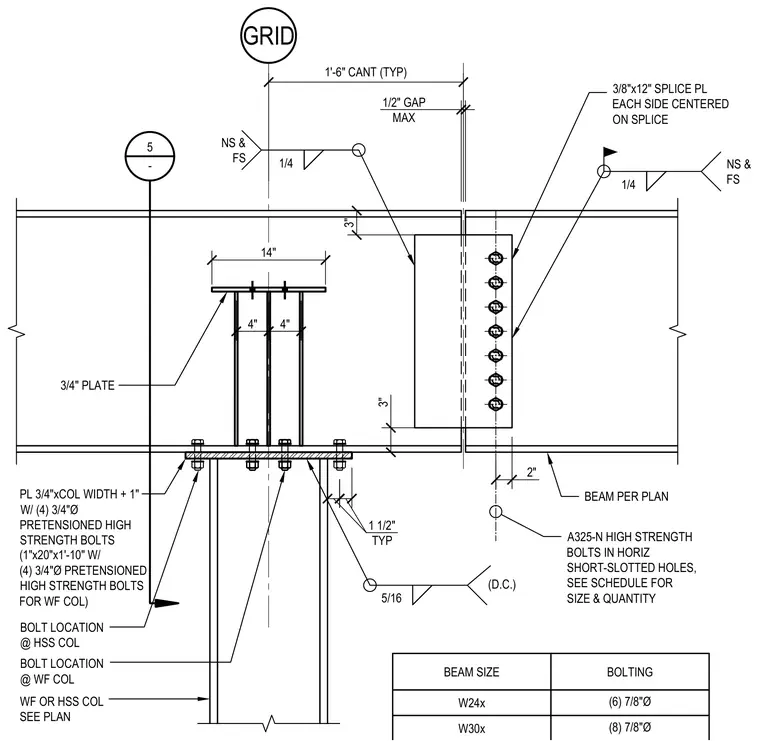

This structural steel connection details a wide flange or hollow structural section column supporting a beam per plan with a cantilever condition. The column capital features a three-quarter-inch plate secured by four three-quarter-inch diameter pretensioned high-strength bolts for a wide flange column, or a plate sized to the column width plus one inch with four bolts for a hollow structural section column. A three-eighths-inch by twelve-inch splice plate is centered on the joint on each side, utilizing A325-N high-strength bolts in horizontal short-slotted holes with sizes and quantities per the schedule. Fillet welds of one-quarter-inch and five-sixteenth-inch sizes are specified on near side and far side as indicated. A maximum one-half-inch gap is maintained at the joint.
4" 4" 2" WF OR HSS COL SEE PLAN 1'-6" CANT (TYP) 3" 5/16 GRID 14" 3/4" PLATE 1/4 1/2" GAP MAX NS & FS 3/8"x12" SPLICE PL EACH SIDE CENTERED ON SPLICE BEAM PER PLAN A325-N HIGH STRENGTH BOLTS IN HORIZ SHORT-SLOTTED HOLES, SEE SCHEDULE FOR SIZE & QUANTITY 5 - (1"x20"x1'-10" W/ (4) 3/4"Ø PRETENSIONED HIGH STRENGTH BOLTS FOR WF COL) 1/4 3" PL 3/4"xCOL WIDTH + 1" W/ (4) 3/4"Ø PRETENSIONED HIGH STRENGTH BOLTS 1 1/2" TYP BOLT LOCATION @ HSS COL BOLT LOCATION @ WF COL BEAM SIZE BOLTING W24x (8) 7/8"Ø W30x (6) 7/8"Ø NS & FS (D.C.)
