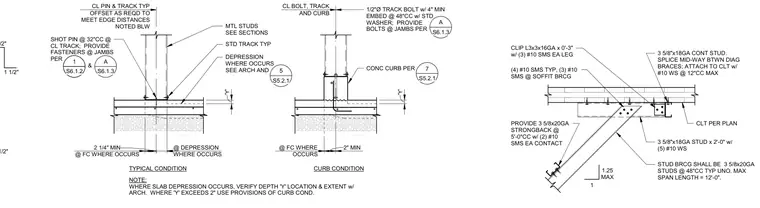

Diagonal Brace and Stud Framing at Cross Laminated Timber

Materials

Concrete Timber / Wood Metal (misc.)

Elements

Ceilings Floors / Slabs Decks Arches Bracing Site / Paving Anchors / Embeds

Connections

Bracing Connection Bolted Connection Rebar Splice / Development Embed Plate

About this detail

Diagonal bracing and metal stud framing connect to cross-laminated timber surfaces, featuring typical and concrete curb conditions at slab depressions. Cold-formed metal framing utilizes 3-5/8 inch by 18-gauge continuous studs and 3-5/8 inch by 20-gauge bracing studs spaced at 48 inches on center with 3-5/8 inch by 20-gauge strongbacks. Connections incorporate L3x3x16-gauge clips secured with number 10 sheet metal screws, number 10 wood screws, shot pins, and 1/2-inch diameter track bolts with standard washers and 4-inch minimum embedment. Slab depressions require verification of depth dimension Y with architectural drawings to determine whether to apply the standard or curb condition detail.
