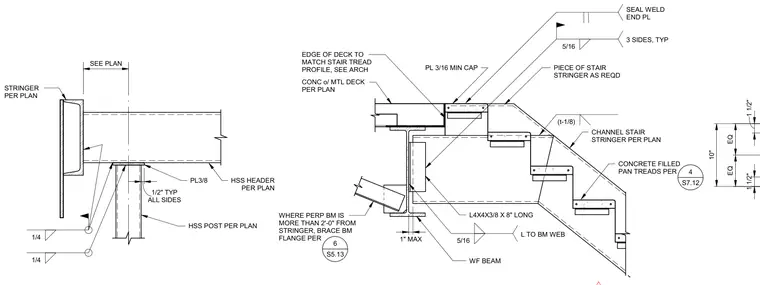

A channel stair stringer carrying concrete-filled pan treads frames into a wide-flange beam and hollow structural section header. The stair stringer connects to the wide-flange beam web using an L4x4x3/8 angle eight inches long, secured with a five-sixteenths-inch weld. A three-sixteenths-inch minimum cap plate and an end plate with a seal weld close off the top of the stair stringer. An additional piece of stair stringer is provided as required, with the edge of the metal deck matched to the stair tread profile. Below, a hollow structural section post supports an hss header via a three-eighths-inch plate welded on all sides with a one-half-inch typical weld.
10" EQ EQ 1 1/2" 1 1/2" SEE PLAN ALL SIDES 1/2" TYP HSS HEADER PER PLAN PL3/8 HSS POST PER PLAN 1/4 1/4 STRINGER PER PLAN WF BEAM CONC o/ MTL DECK PER PLAN CHANNEL STAIR STRINGER PER PLAN CONCRETE FILLED PAN TREADS PER 5/16 3 SIDES, TYP WHERE PERP BM IS MORE THAN 2'-0" FROM STRINGER, BRACE BM FLANGE PER EDGE OF DECK TO MATCH STAIR TREAD PROFILE, SEE ARCH SEAL WELD END PL 4 S7.12 6 S5.13 L4X4X3/8 X 8" LONG 1" MAX PIECE OF STAIR STRINGER AS REQD (t-1/8) 5/16 L TO BM WEB PL 3/16 MIN CAP
