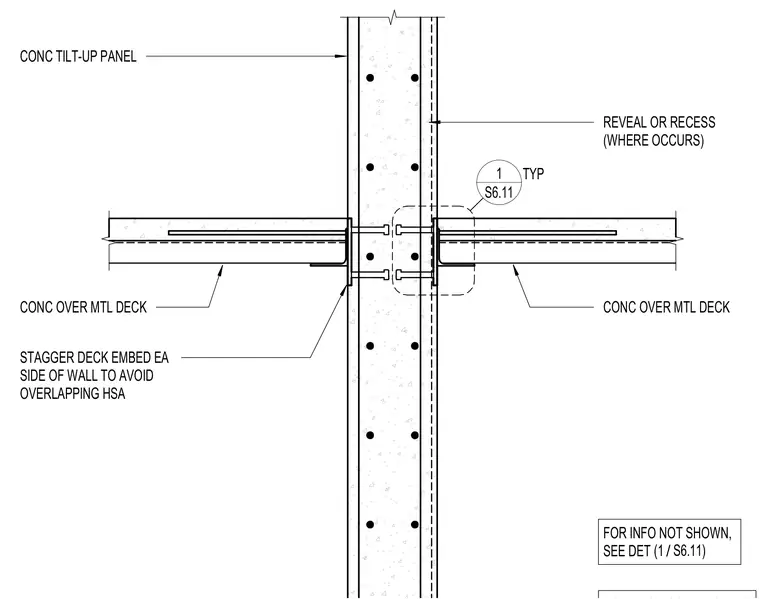

A concrete tilt-up wall panel connects to concrete over metal deck floor slabs bearing on each side of the wall. Deck embeds are staggered on each side of the wall to avoid overlapping the headed stud anchors. Reveal or recess features are provided in the concrete tilt-up panel where indicated.
CONC OVER MTL DECK FOR INFO NOT SHOWN, SEE DET / (1 S6.11) CONC TILT-UP PANEL REVEAL OR RECESS (WHERE OCCURS) S6.11 1 TYP CONC OVER MTL DECK STAGGER DECK EMBED EA SIDE OF WALL TO AVOID OVERLAPPING HSA
