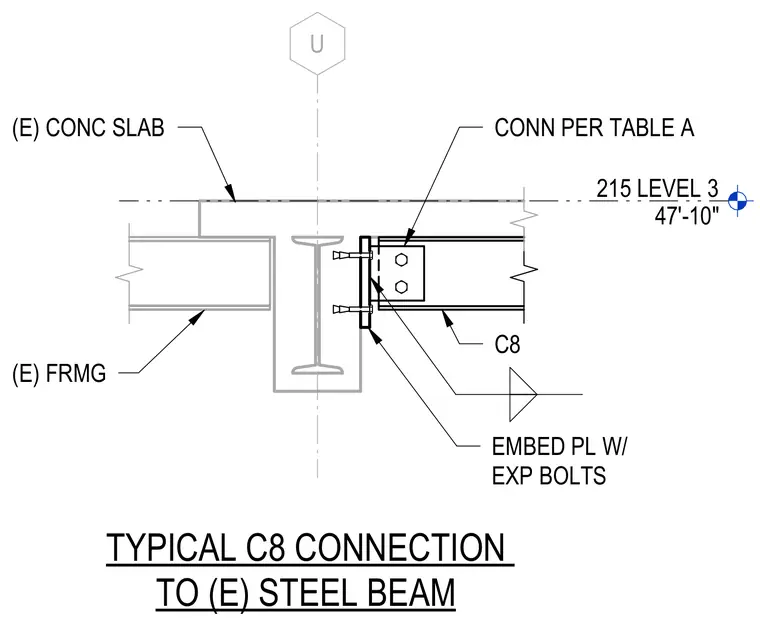

A C8 channel steel member connects to an existing steel beam and concrete slab at Level 3. The connection utilizes an embed plate with expansion bolts securing the C8 member to the support per Table A, adjacent to existing framing and concrete slab construction.
215 LEVEL 3 47'-10" U TYPICAL C8 CONNECTION TO (E) STEEL BEAM (E) CONC SLAB (E) FRMG CONN PER TABLE A C8 EMBED PL W/ EXP BOLTS
