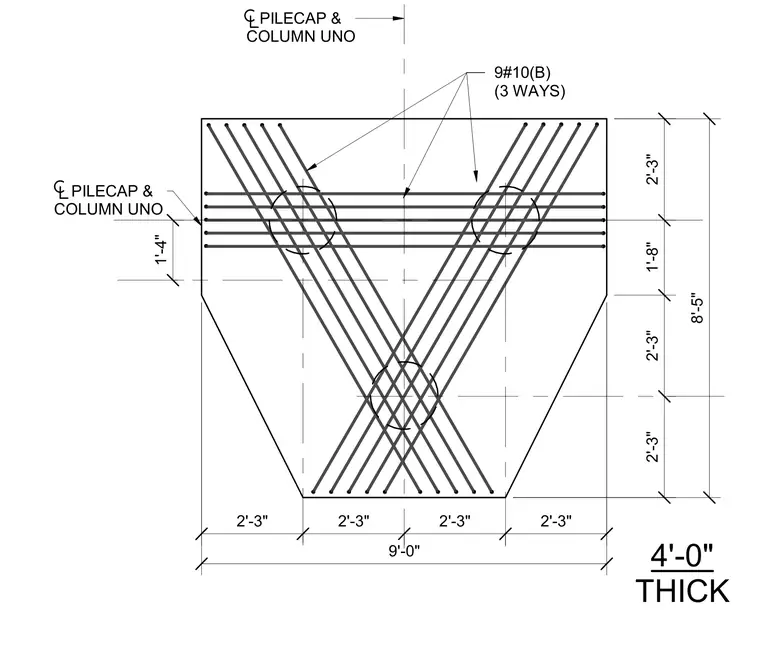

A four-foot-thick pile cap is supported by three piles, featuring bottom reinforcement of nine number ten bars running in three directions. Dimensions establish the layout of the pile cap and column centerlines relative to the pile locations.
4'-0" THICK PILECAP & COLUMN UNO 9#10(B) (3 WAYS) PILECAP & COLUMN UNO 2'-3" 2'-3" 2'-3" 2'-3" 9'-0" 2'-3" 2'-3" 1'-8" 2'-3" 1'-4" 8'-5"
