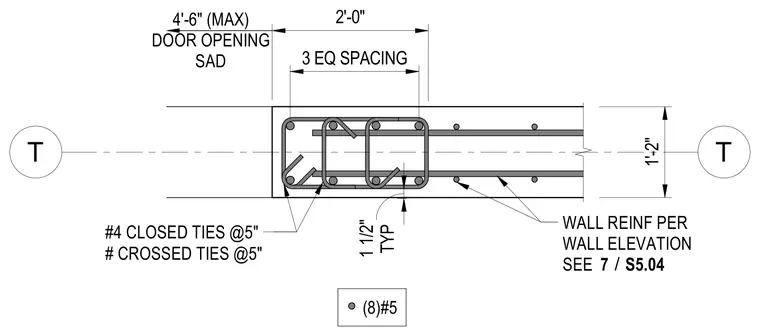

Boundary element reinforcement for a concrete wall adjacent to a door opening comprises eight number five vertical reinforcing bars supplemented by number four closed ties and crossed ties spaced at five inches on center. The concrete wall has a thickness of one foot two inches with a typical clear cover of one and one-half inches. Additional wall reinforcement is provided per the wall elevation and referenced to detail seven on sheet S5.04.
(8)#5 WALL REINF PER WALL ELEVATION SEE #4 CLOSED TIES @5" # CROSSED TIES @5" TYP 1 1/2" 3 EQ SPACING 2'-0" 4'-6" (MAX) DOOR OPENING SAD / 7 S5.04 1'-2" T T
