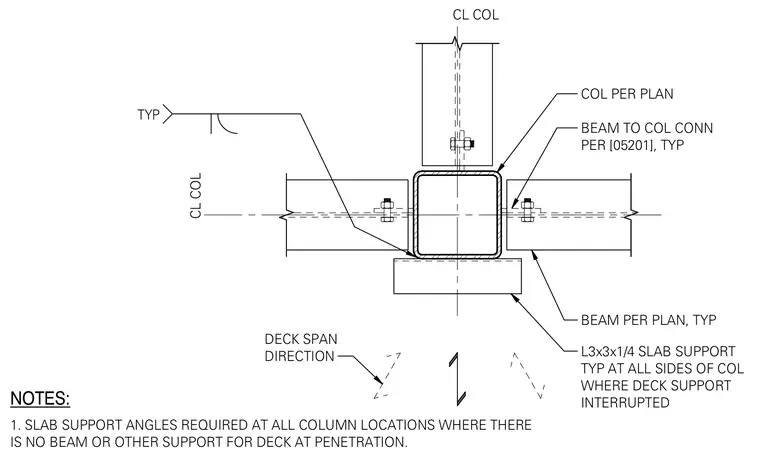

An L3x3x1/4 slab support angle is placed at all sides of the column where the metal deck support is interrupted by floor penetrations or framing geometry. Typical beams connect to the column per standard framing details, and additional slab support angles are required at all column locations lacking a beam or alternative edge support for the deck.
1. SLAB SUPPORT ANGLES REQUIRED AT ALL COLUMN LOCATIONS WHERE THERE IS NO BEAM OR OTHER SUPPORT FOR DECK AT PENETRATION. NOTES: CL COL CL COL TYP COL PER PLAN BEAM TO COL CONN PER [05201], TYP BEAM PER PLAN, TYP L3x3x1/4 SLAB SUPPORT TYP AT ALL SIDES OF COL WHERE DECK SUPPORT INTERRUPTED DECK SPAN DIRECTION
