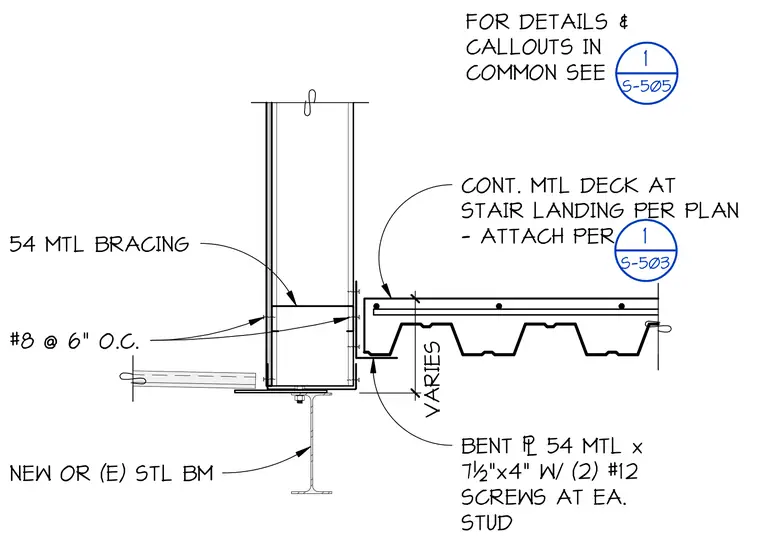

A continuous metal deck at a stair landing bears on a bent metal plate measuring 54 metal by seven and one-half inches by four inches. The plate is fastened with two number twelve screws at each stud. A new or existing steel beam supports the assembly below. Metal bracing at fifty-four metal is secured with number eight screws at six inches on center.
VARIES #8 @ 6" O.C. 54 MTL BRACING BENT 54 MTL x 7½"x4" W/ (2) #12 SCREWS AT EA. STUD CONT. MTL DECK AT STAIR LANDING PER PLAN - ATTACH PER FOR DETAILS & CALLOUTS IN COMMON SEE 1 S-505 1 S-503 NEW OR (E) STL BM
