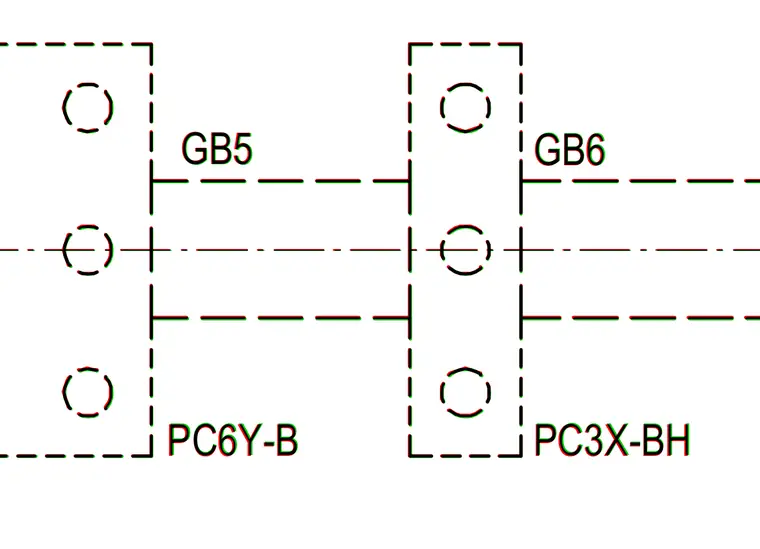

Connection between framing members PC3X-BH and PC6Y-B, integrated with structural elements designated as GB5 and GB6. The assembly features aligned connection points indicated by dashed lines and centerlines. Fastener locations are marked along the intersecting members.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
Start membership
