Wide Flange Beam Centered on W14 Column Connection

Elements

Connections

About this detail

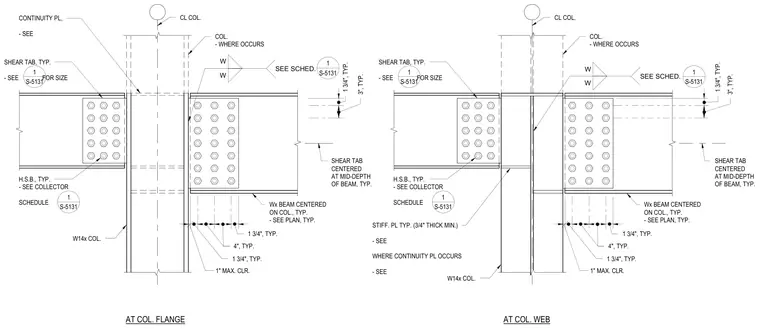

The connection details a wide flange beam centered on a W14 column flange and web with a typical shear tab positioned at the mid-depth of the beam. High-strength bolts secure the beam web to the single plate shear tab, with bolt sizes and spacings designated per the collector schedule. Continuity plates and stiffener plates with a minimum three-quarter-inch thickness are provided at specific locations where required by column forces. Fillet welds connect the shear tab and plates, sized according to structural drawings.
