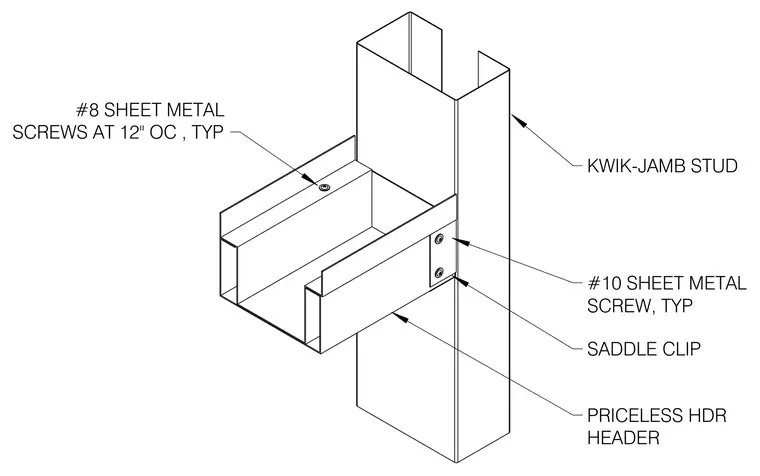

A header connects to a vertical jamb stud through a saddle clip attached with number ten sheet metal screws typically at each side. The header member rests within the saddle clip and is secured with number eight sheet metal screws spaced at twelve inches on center typically.
KWIK-JAMB STUD #10 SHEET METAL SCREW, TYP SADDLE CLIP PRICELESS HDR HEADER #8 SHEET METAL SCREWS AT 12" OC , TYP
