Structural · S-NSZWV

Typical Conduit in Slab on Steel Deck

Materials

Concrete Reinforced Concrete Steel Timber / Wood Glass / Glazing Composite

Elements

Beams Floors / Slabs Decks Arches Reinforcing Roof / Floor Openings

Connections

Shear Stud / Composite

About this detail

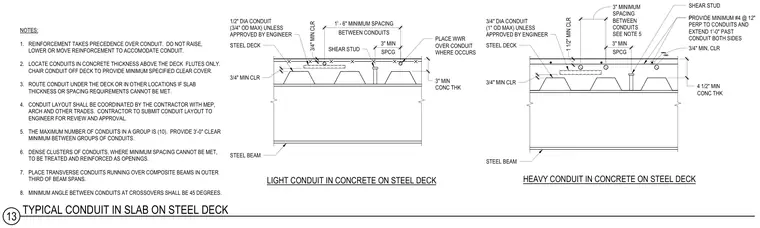

Light and heavy electrical conduits are embedded in a concrete slab over a profiled steel deck and steel beam. Conduits must be located within the concrete thickness above the deck flutes, maintaining specified minimum clear coverages and spacings. Welded wire reinforcement is placed over the conduits where applicable, and additional number four reinforcing bars at twelve inches on center are provided perpendicular to heavy conduits and extended past them on both sides. Conduits are elevated on chairs off the deck, with structural reinforcement taking precedence over conduit placement at all times.
