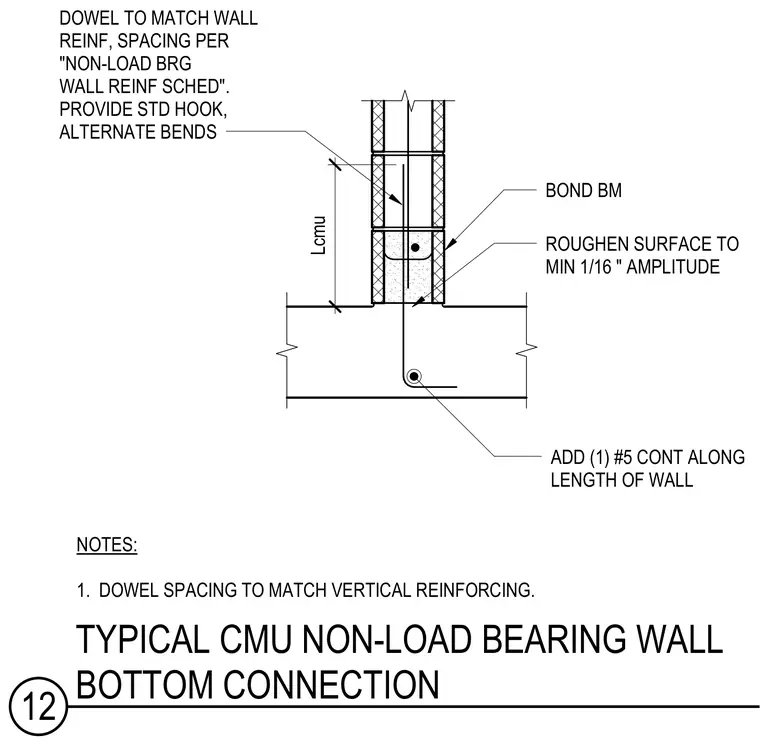

The bottom connection of a non-load bearing concrete masonry unit wall ties into a concrete foundation or slab. Vertical dowels match the wall reinforcing and feature standard hooks with alternate bends, spaced according to the non-load bearing wall reinforcing schedule. The concrete surface is roughened to a minimum one-sixteenth inch amplitude for bond adhesion. A bond beam contains one continuous number five reinforcing bar along the length of the wall.
NOTES: 1. DOWEL SPACING TO MATCH VERTICAL REINFORCING. ROUGHEN SURFACE TO MIN 1/16 " AMPLITUDE DOWEL TO MATCH WALL REINF, SPACING PER "NON-LOAD BRG WALL REINF SCHED". PROVIDE STD HOOK, ALTERNATE BENDS 15" Lcmu ADD (1) #5 CONT ALONG LENGTH OF WALL BOND BM 12 TYPICAL CMU NON-LOAD BEARING WALL BOTTOM CONNECTION
