Two number five reinforcing bars are placed with a one-inch clearance from the top of the slab as a typical condition. These bars extend two feet six inches from the grid line and feature hooks at the slab edge where applicable. The steel deck is omitted from the plan view for clarity. The supporting steel beam is sized per plan.

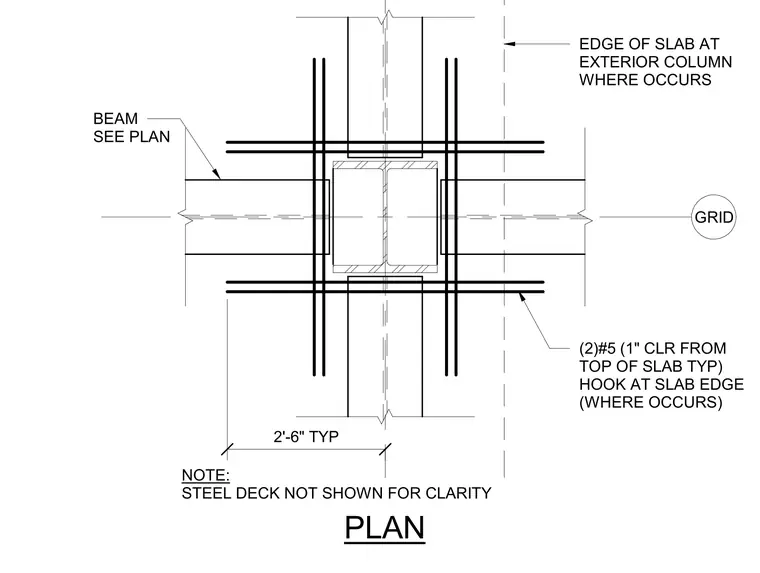

NOTE: STEEL DECK NOT SHOWN FOR CLARITY BEAM SEE PLAN (2)#5 (1" CLR FROM TOP OF SLAB TYP) HOOK AT SLAB EDGE (WHERE OCCURS) EDGE OF SLAB AT EXTERIOR COLUMN WHERE OCCURS 2'-6" TYP PLAN GRID
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
