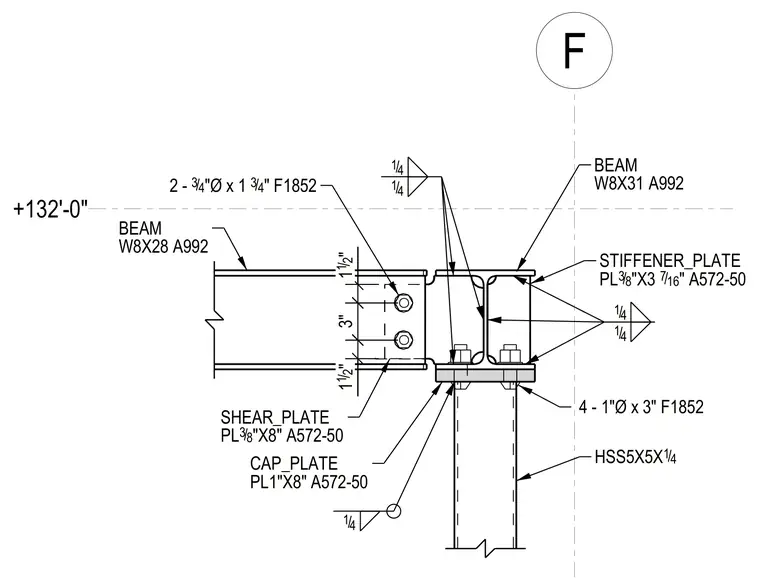

An HSS5x5x1/4 structural steel column supports a W8x31 A992 beam through a 1-inch thick A572-50 cap plate secured by four 1-inch diameter by 3-inch long F1852 bolts. Stiffener plates measuring 3/8-inch by 3-7/16-inch A572-50 are welded to the column web with quarter-inch fillet welds. A W8x28 A992 framing beam connects to the column assembly via a 3/8-inch by 8-inch A572-50 shear plate welded to the web, fastened with two 3/4-inch diameter by 1-3/4-inch long F1852 structural bolts.
F +132'-0" BEAM W8X31 A992 1 12 / " STIFFENER_PLATE PL 3 8 / "X3 7 16 / " A572-50 BEAM W8X28 A992 CAP_PLATE PL1"X8" A572-50 4 - 1"Ø x 3" F1852 1 12 / " 14 / 14 / HSS5X5X 1 4 / 14 / 14 / SHEAR_PLATE PL 3 8 / "X8" A572-50 2 - 3 4 / "Ø x 1 3 4 / " F1852 14 / 3"
