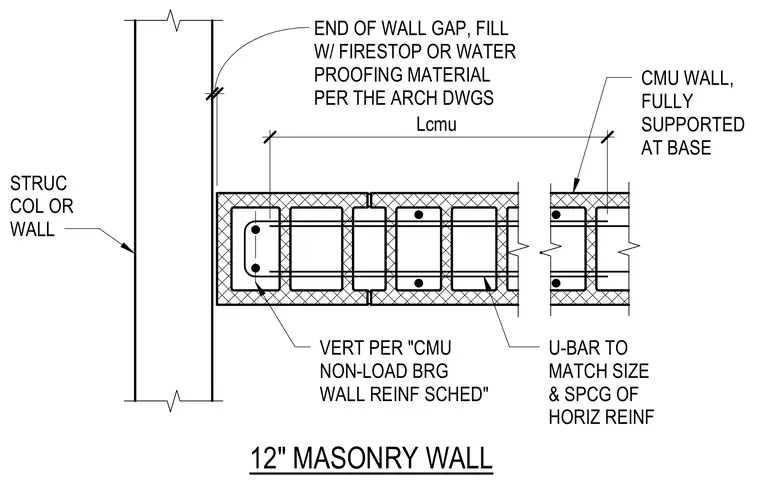

A twelve-inch concrete masonry unit wall is fully supported at its base and set adjacent to a structural column or wall with an end-of-wall gap. The gap is filled with firestop or waterproofing material per the architectural drawings. Vertical reinforcement is installed per the CMU non-load bearing wall reinforcement schedule. U-bars match the size and spacing of the horizontal reinforcement.
1/2" CMU WALL, FULLY SUPPORTED AT BASE END OF WALL GAP, FILL W/ FIRESTOP OR WATER PROOFING MATERIAL PER THE ARCH DWGS VERT PER "CMU NON-LOAD BRG WALL REINF SCHED" 12" MASONRY WALL 35" Lcmu U-BAR TO MATCH SIZE & SPCG OF HORIZ REINF STRUC COL OR WALL
