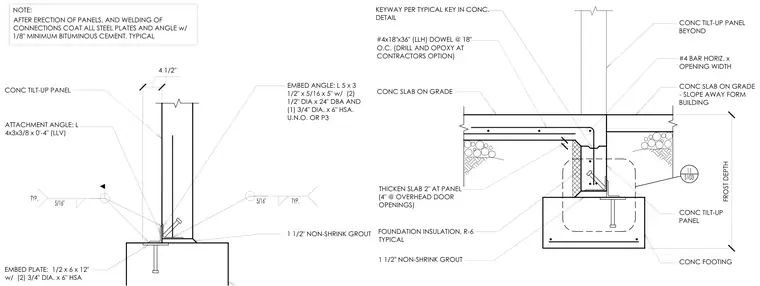

Foundation and threshold assembly at an opening in a concrete tilt-up wall panel. A concrete slab on grade bears on a concrete footing with foundation insulation and a keyway joint, thickened two inches at the panel or four inches at overhead door openings. Number four dowels measuring eighteen by thirty-six inches are spaced at eighteen inches on center, supplemented by a horizontal number four bar spanning the opening width. An embed angle measuring five by three and a half by five-sixteenths inches by five inches long is anchored with two half-inch diameter by twenty-four-inch dowel bar anchors and one three-quarter-inch diameter by six-inch headed stud anchor. An attachment angle measuring four by three by three-eighths inches by four inches long connects to an embed plate measuring half by six by twelve inches with two three-quarter-inch diameter by six-inch headed stud anchors, with all steel plates and angles coated with a minimum one-eighth-inch of bituminous cement after erection and welding. A one-and-a-half-inch layer of non-shrink grout is provided beneath components.
1 1/2" NON-SHRINK GROUT CONC SLAB ON GRADE - SLOPE AWAY FORM BUILDING #4x18"x36" (LLH) DOWEL @ 18" O.C. (DRILL AND OPOXY AT CONTRACTORS OPTION) CONC SLAB ON GRADE CONC TILT-UP PANEL BEYOND #4 BAR HORIZ. x OPENING WIDTH THICKEN SLAB 2" AT PANEL (4" @ OVERHEAD DOOR OPENINGS) KEYWAY PER TYPICAL KEY IN CONC. DETAIL CONC FOOTING FOUNDATION INSULATION, R-6 TYPICAL FROST DEPTH CONC TILT-UP PANEL AFTER ERECTION OF PANELS, AND WELDING OF CONNECTIONS COAT ALL STEEL PLATES AND ANGLE w/ 1/8" MINIMUM BITUMINOUS CEMENT. TYPICAL EMBED PLATE: 1/2 x 6 x 12" w/ (2) 3/4" DIA. x 6" HSA ATTACHMENT ANGLE: L 4x3x3/8 x 0'-4" (LLV) 4 1/2" 1 1/2" NON-SHRINK GROUT EMBED ANGLE: L 5 x 3 1/2" x 5/16 x 5" w/ (2) 1/2" DIA x 24" DBA AND (1) 3/4" DIA. x 6" HSA. U.N.O. OR P3 NOTE: CONC TILT-UP PANEL
