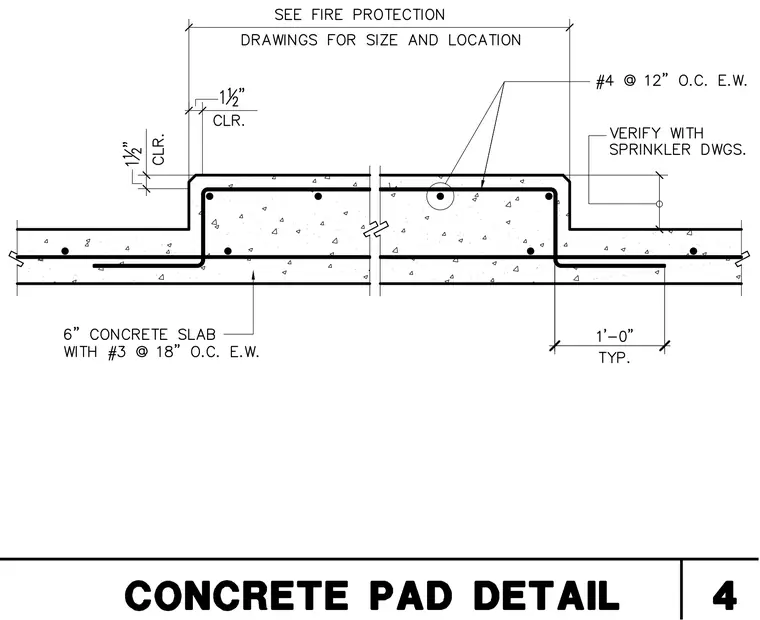

A six-inch concrete slab reinforced with number three bars at eighteen inches on center each way features a thickened pad detail. The pad includes number four reinforcing bars at twelve inches on center each way with one and a half inches of clearance. The design coordinates with fire protection and sprinkler drawings for exact sizing and location requirements.
