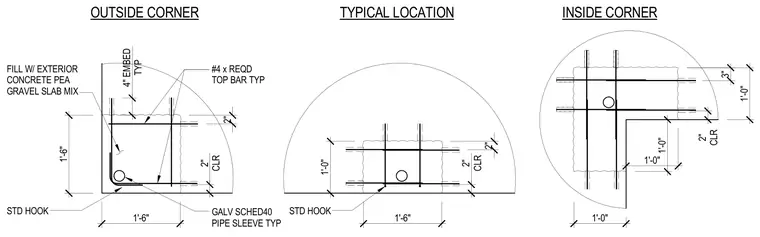

Concrete guardrail repair details featuring embedded galvanized Schedule 40 pipe sleeves set into exterior concrete pea gravel slab mix. The assembly includes number four reinforcing top bars with standard hooks and specified clearances for corner and typical edge conditions. A four-inch embedment depth is maintained typically with standard hook rebar development.
1'-6" 1'-6" 2" CLR 2" 1'-6" 1'-0" 2" CLR 4" EMBED TYP 2" 1'-0" 1'-0" 2" CLR 3" 1'-0" 1'-0" OUTSIDE CORNER FILL W/ EXTERIOR CONCRETE PEA GRAVEL SLAB MIX STD HOOK #4 x REQD TOP BAR TYP GALV SCHED40 PIPE SLEEVE TYP TYPICAL LOCATION STD HOOK INSIDE CORNER
