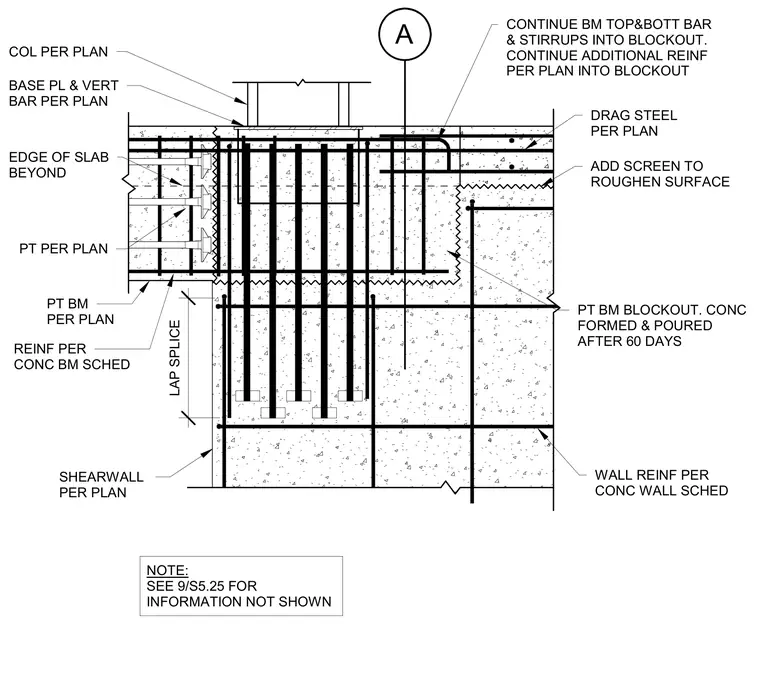

A post-tensioned beam connection frames into the end of a concrete shearwall with a designated blockout. Beam top and bottom bars, stirrups, and additional reinforcing continue into the blockout area, which is formed and poured at least sixty days after the primary pour. A prepared construction joint with an added screen roughens the surface for bonding. Drag steel and wall reinforcing are placed per plans, and a column with a base plate bears on the upper concrete assembly.
LAP SPLICE REINF PER CONC BM SCHED PT BM PER PLAN SHEARWALL PER PLAN NOTE: SEE 9/S5.25 FOR INFORMATION NOT SHOWN ADD SCREEN TO ROUGHEN SURFACE COL PER PLAN BASE PL & VERT BAR PER PLAN PT PER PLAN WALL REINF PER CONC WALL SCHED A CONTINUE BM TOP&BOTT BAR & STIRRUPS INTO BLOCKOUT. CONTINUE ADDITIONAL REINF PER PLAN INTO BLOCKOUT PT BM BLOCKOUT. CONC FORMED & POURED AFTER 60 DAYS EDGE OF SLAB BEYOND DRAG STEEL PER PLAN
