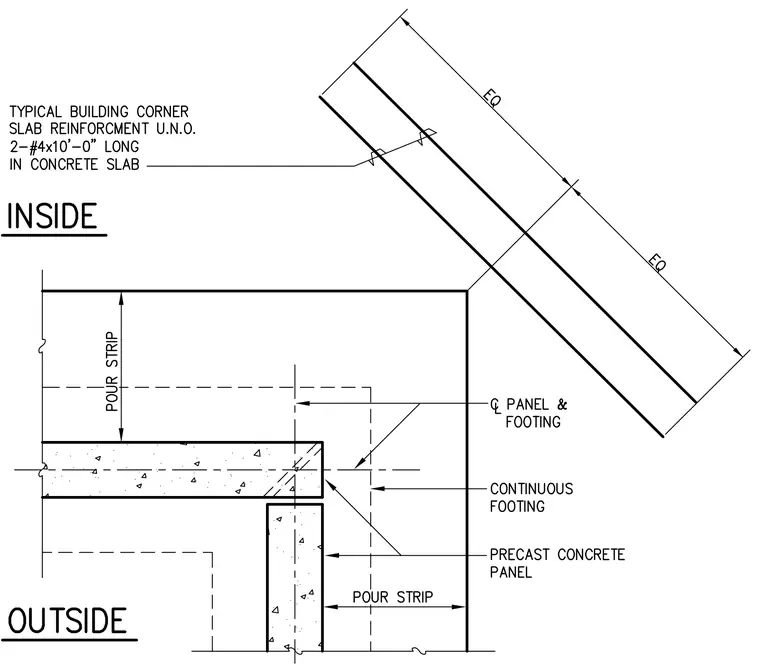

This structural plan detail shows a typical building corner layout with precast concrete panels and a continuous footing. The concrete slab includes two number four reinforcing bars, each ten feet long, placed at the corner. A pour strip is designated along the perimeter adjacent to the precast concrete panels and continuous footing. Dimensions indicate equal spacing along the exterior alignment.
