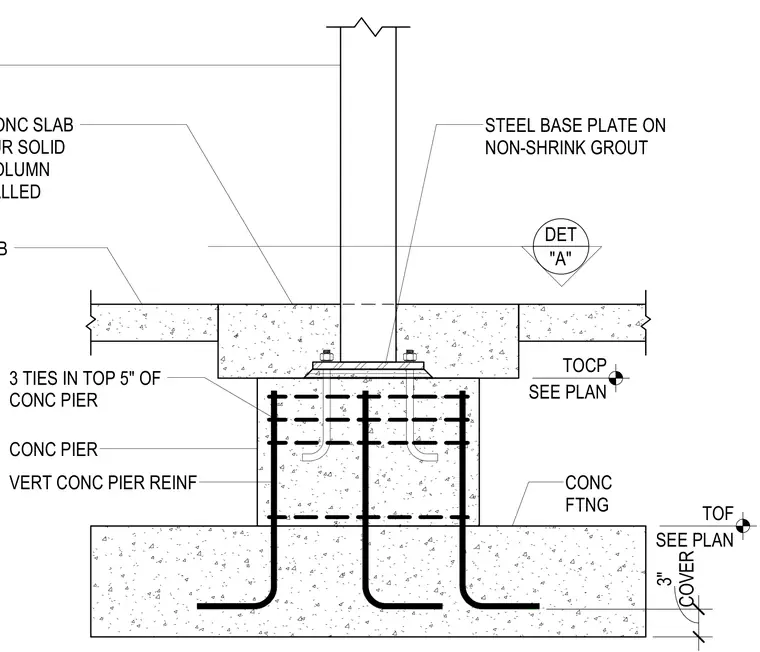

A steel column bears on a steel base plate set on non-shrink grout over a reinforced concrete pier. The concrete pier features vertical reinforcement and three ties within the top five inches, anchored into a concrete footing with three inches of concrete cover. A concrete slab on grade surrounds the column with a blockout that is poured solid after the steel column is installed.
CONC SLAB ON GRADE BLOCKOUT IN CONC SLAB ON GRADE. POUR SOLID AFTER STEEL COLUMN HAS BEEN INSTALLED STEEL BASE PLATE ON NON-SHRINK GROUT CONC PIER 3 TIES IN TOP 5" OF CONC PIER CONC FTNG COVER 3" VERT CONC PIER REINF "A" DET TOF SEE PLAN TOCP SEE PLAN
