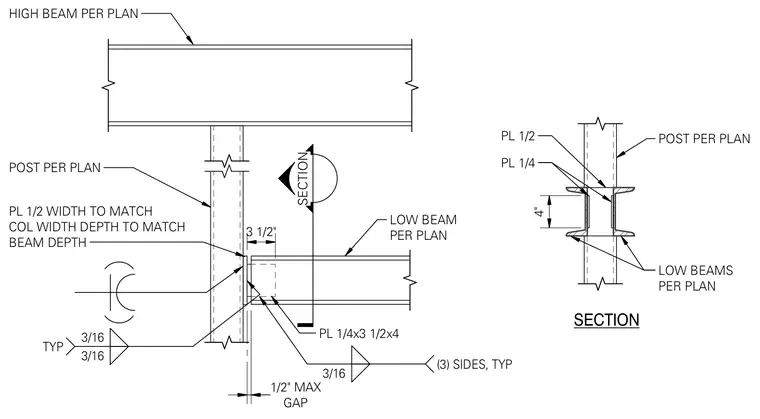

A low steel beam connects to a vertical steel post sized per plan, positioned below a high beam framing member. A half-inch plate, sized in width to match the column width and depth to match the beam depth, is welded to the post with typical three-sixteenths inch welds. A quarter-inch plate measuring three and a half by four inches ties into the connection with three-sixteenths inch welds on three sides typically. A maximum one-half inch gap is maintained at the beam end connection.
GAP 1/2" MAX 3 1/2" SECTION SECTION PL 1/4 POST PER PLAN 4" LOW BEAMS PER PLAN 3/16 (3) SIDES, TYP PL 1/4x3 1/2x4 LOW BEAM PER PLAN 3/16 3/16 TYP PL 1/2 WIDTH TO MATCH COL WIDTH DEPTH TO MATCH BEAM DEPTH POST PER PLAN HIGH BEAM PER PLAN PL 1/2
