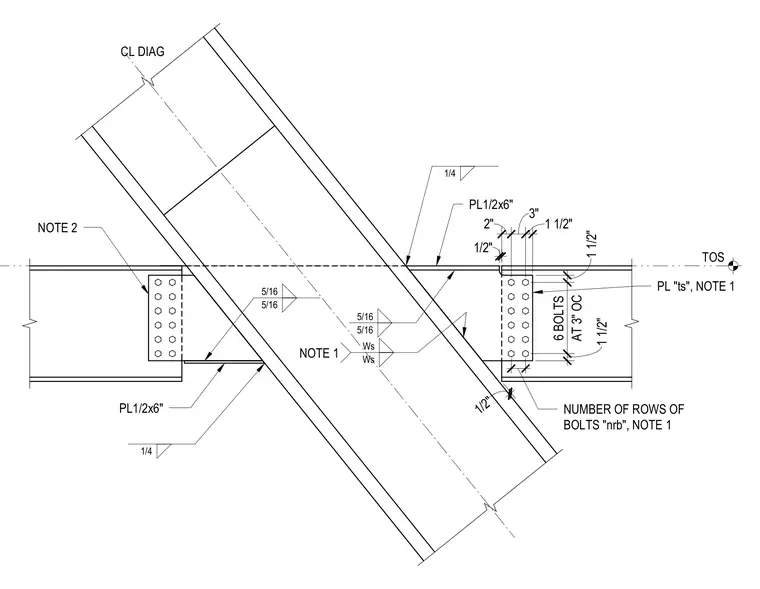

This structural steel connection details a diagonal brace intersecting a beam and column framework using gusset plates and shear tabs. The assembly features 1/2-inch by 6-inch plates connected with six bolts spaced at 3 inches on center. Fillet welds of 1/4-inch and 5/16-inch sizes secure the gusset plates and structural members. Additional notes specify plate thicknesses and bolt rows for the structural steel framing.
NOTE 2 PL1/2x6" NUMBER OF ROWS OF BOLTS "nrb", NOTE 1 PL "ts", NOTE 1 1/2" 2" 3" 1 1/2" 1/4 1 1/2" AT 3" OC 6 BOLTS 1 1/2" 1/2" 3" 1/4 5/16 5/16 5/16 5/16 NOTE 1 Ws Ws PL1/2x6" TOS CL DIAG
