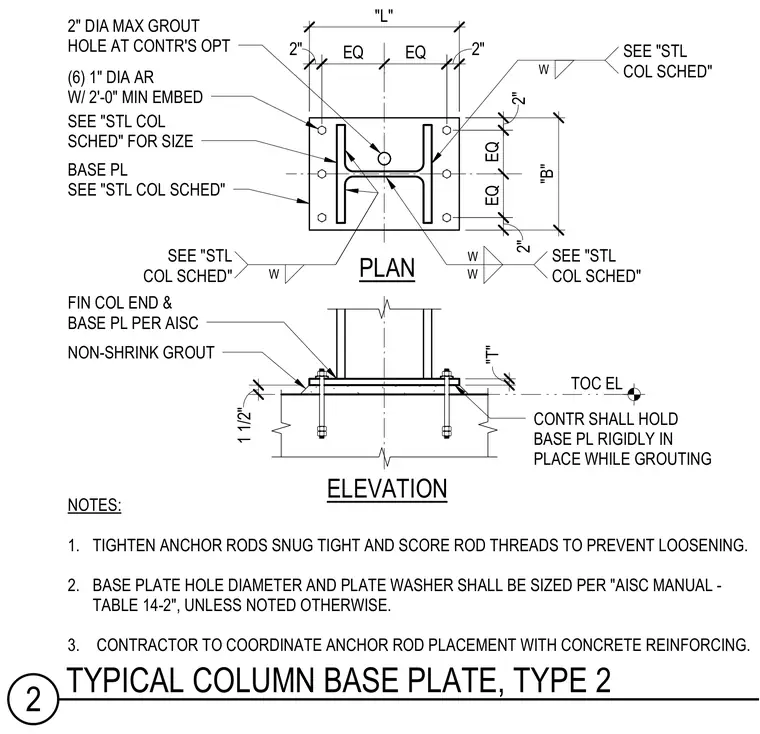

A structural steel column base plate connection bears on a concrete foundation. The assembly includes a steel base plate sized per the structural column schedule and welded to the steel column. Six 1-inch diameter anchor rods with a 2-foot minimum embedment secure the base plate, featuring a 2-inch diameter maximum grout hole at the contractor's option. A 1 1/2-inch layer of non-shrink grout fills the space beneath the base plate up to the top of concrete elevation. Finished column ends and base plates must comply with AISC standards, and the contractor must hold the base plate rigidly in place during grouting while coordinating anchor rod placement with concrete reinforcing.
TOC EL 2" DIA MAX GROUT HOLE AT CONTR'S OPT (6) 1" DIA AR W/ 2'-0" MIN EMBED SEE "STL COL SCHED" FOR SIZE BASE PL SEE "STL COL SCHED" FIN COL END & BASE PL PER AISC NON-SHRINK GROUT CONTR SHALL HOLD BASE PL RIGIDLY IN PLACE WHILE GROUTING SEE "STL COL SCHED" W W SEE "STL COL SCHED" W NOTES: 1. TIGHTEN ANCHOR RODS SNUG TIGHT AND SCORE ROD THREADS TO PREVENT LOOSENING. 2. BASE PLATE HOLE DIAMETER AND PLATE WASHER SHALL BE SIZED PER "AISC MANUAL - TABLE 14-2", UNLESS NOTED OTHERWISE. 3. CONTRACTOR TO COORDINATE ANCHOR ROD PLACEMENT WITH CONCRETE REINFORCING. ELEVATION PLAN SEE "STL COL SCHED" W 1" 1 1/2" 18" 24" 2" 2" 2" 2" EQ EQ EQ EQ "B" "L" "T" 2 TYPICAL COLUMN BASE PLATE, TYPE 2
