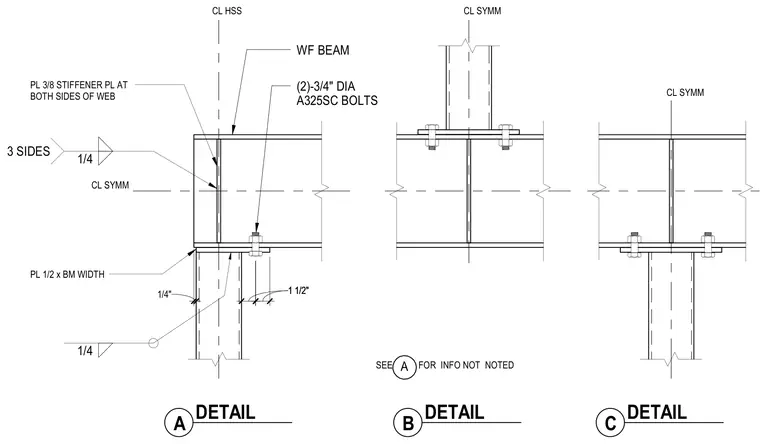

A wide-flange beam is supported by a hollow structural section column utilizing a half-inch thick seat plate matching the beam width welded with a quarter-inch fillet weld on three sides. Two three-quarter-inch diameter A325SC bolts secure the connection through the beam flange. Three-eighths-inch thick stiffener plates are welded to both sides of the beam web with quarter-inch fillet welds.
A WF BEAM CL SYMM CL HSS CL SYMM 1/4" PL 3/8 STIFFENER PL AT BOTH SIDES OF WEB (2)-3/4" DIA A325SC BOLTS CL SYMM SEE FOR INFO NOT NOTED 1 1/2" 1 1/2" PL 1/2 x BM WIDTH 1/4 3 SIDES 1/4 A DETAIL B DETAIL C DETAIL
