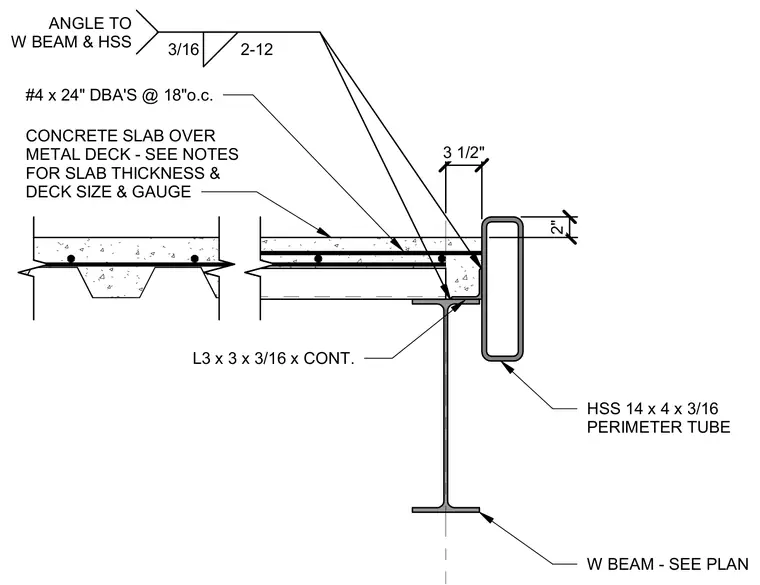

A concrete slab poured over metal deck bears on a wide-flange beam with slab thickness and deck size specified per structural notes. A continuous 3-inch by 3-inch by 3/16-inch angle connects the wide-flange beam to a hollow structural section 14-inch by 4-inch by 3/16-inch perimeter tube. The angle is welded with a three-sixteenths-inch fillet weld spaced at twelve inches. Number four dowel bar anchors at twenty-four inches total length are spaced at eighteen inches on center.
3 1/2" 2" 3/16 2-12 ANGLE TO W BEAM & HSS W BEAM - SEE PLAN CONCRETE SLAB OVER METAL DECK - SEE NOTES FOR SLAB THICKNESS & DECK SIZE & GAUGE L3 x 3 x 3/16 x CONT. HSS 14 x 4 x 3/16 PERIMETER TUBE #4 x 24" DBA'S @ 18"o.c.
