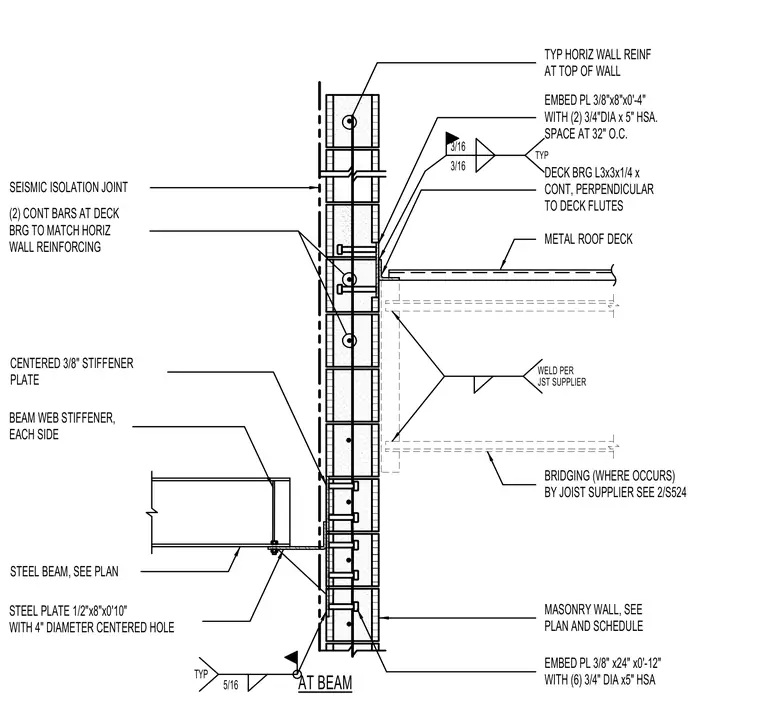

A structural steel roof deck bearing and bridging connection occurs at an 8-inch or 10-inch masonry wall. The metal roof deck bears on a continuous L3x3x1/4 angle oriented perpendicular to the deck flutes, anchored via embedded plates measuring 3/8-inch by 8-inch by 4-inches with two 3/4-inch diameter by 5-inch heavy-duty structural anchors spaced at 32 inches on center. Two continuous reinforcing bars at the deck bearing match the horizontal wall reinforcing. Additional framing includes a steel beam featuring web stiffeners on each side and a 1/2-inch by 8-inch by 10-inch steel plate with a 4-inch diameter centered hole. A seismic isolation joint is located at the wall interface, and bridging occurs as specified by the joist supplier.
WELD PER JST SUPPLIER MASONRY WALL, SEE PLAN AND SCHEDULE AT TOP OF WALL TYP HORIZ WALL REINF EMBED PL 3/8"x8"x0'-4" WITH (2) 3/4"DIA x 5" HSA. SPACE AT 32" O.C. DECK BRG L3x3x1/4 x CONT, PERPENDICULAR TO DECK FLUTES METAL ROOF DECK 3/16 BRIDGING (WHERE OCCURS) BY JOIST SUPPLIER SEE 2/S524 (2) CONT BARS AT DECK BRG TO MATCH HORIZ WALL REINFORCING 3/16 TYP TYP 5/16 EMBED PL 3/8" x24" x0'-12" WITH (6) 3/4" DIA x5" HSA AT BEAM BEAM WEB STIFFENER, EACH SIDE STEEL PLATE 1/2"x8"x0'10" WITH 4" DIAMETER CENTERED HOLE STEEL BEAM, SEE PLAN SEISMIC ISOLATION JOINT CENTERED 3/8" STIFFENER PLATE
